Description
What is the DockLite G4?

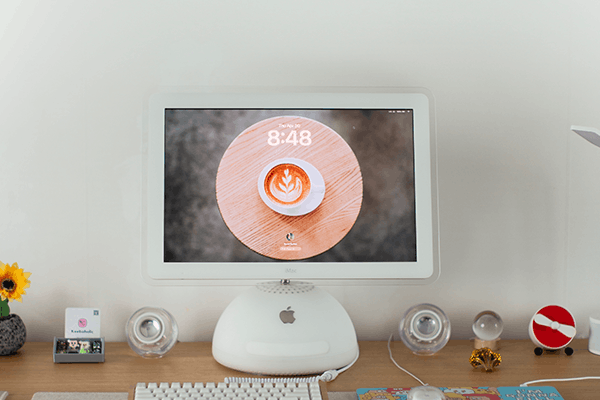

Built specially for the iMac G4, the DockLite delivers a simple, effective way to turn your ageing iMac into a functional external display. An integrated amplifier keeps your original Pro Speakers in play, and Juicy‑Link lets you adjust backlight brightness from software. An onboard USB hub means your keyboard, mouse and other accessories stay connected too.
As seen on
No soldering required
Plug and play, fully reversible.
No soldering required, and nothing permanent. Open your iMac, swap out the old logic board, and the DockLite drops straight into its place.
Open your iMac
Access the internals using our illustrated guide — no special tools beyond a standard screwdriver.
Remove the logic board
Disconnect and lift out the original logic board. The process is completely reversible.
Install the DockLite G4
Slot the DockLite into place, reconnect the cabling, and you’re ready to go.
Gallery
A closer look.

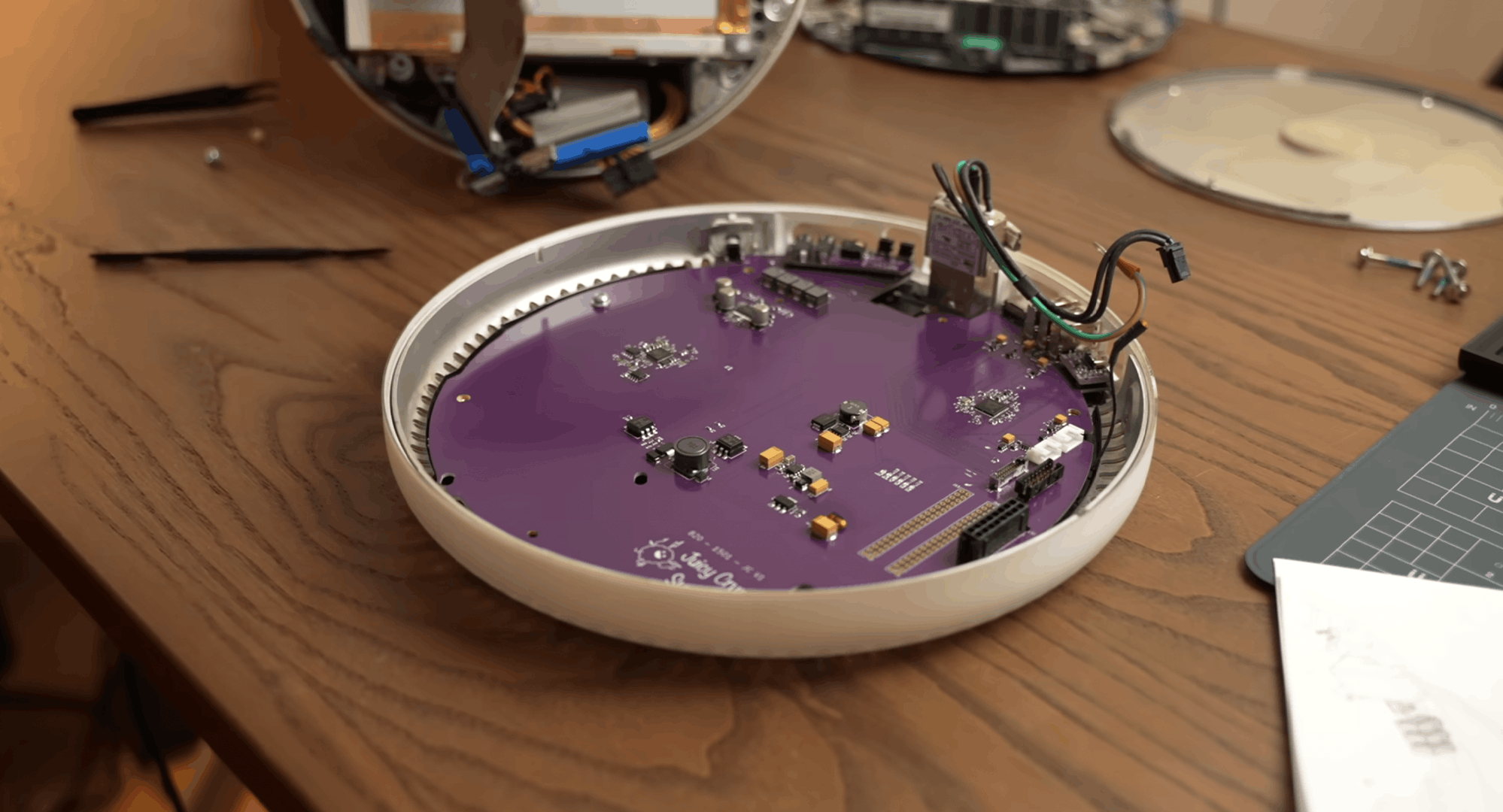

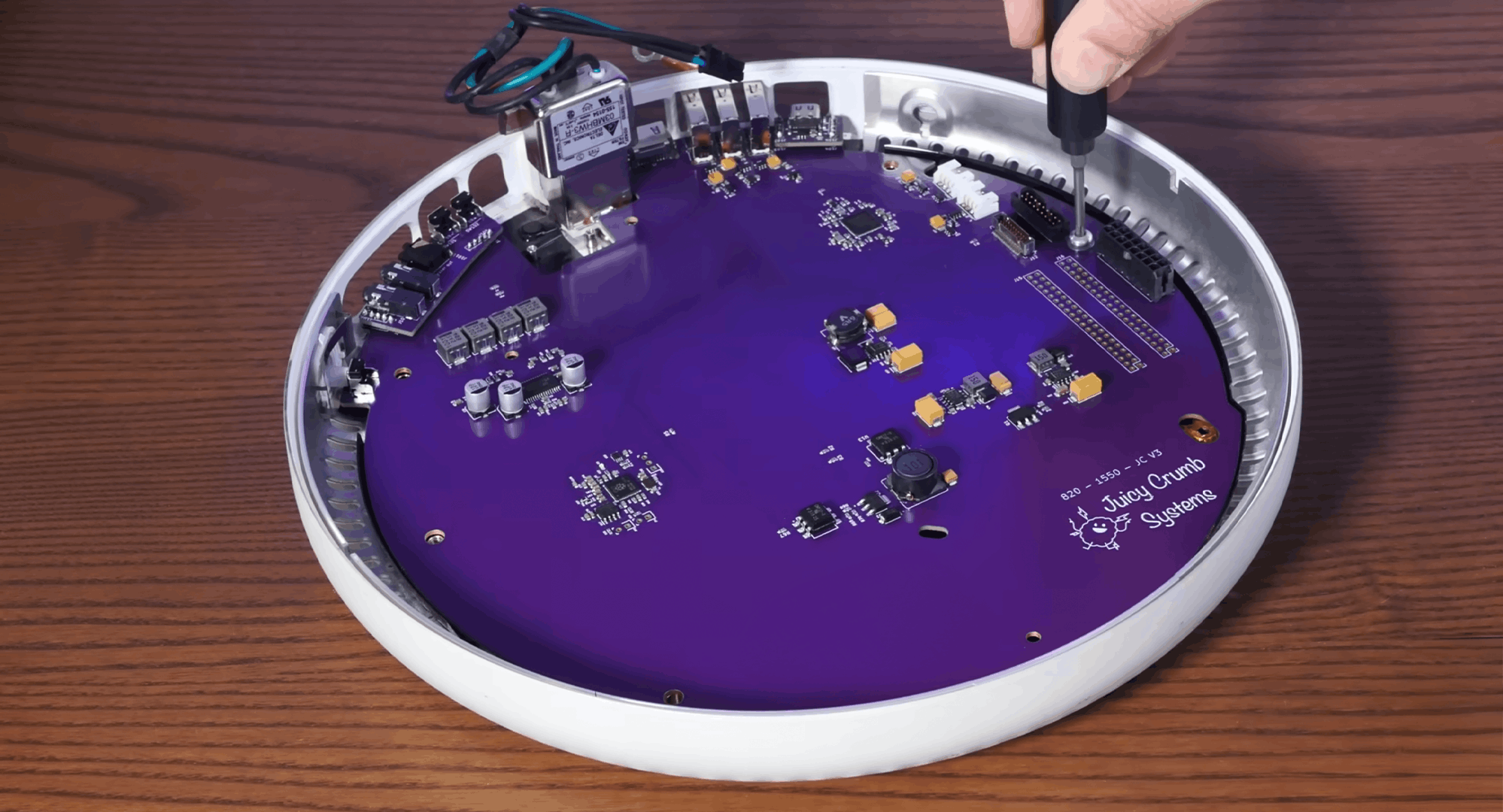

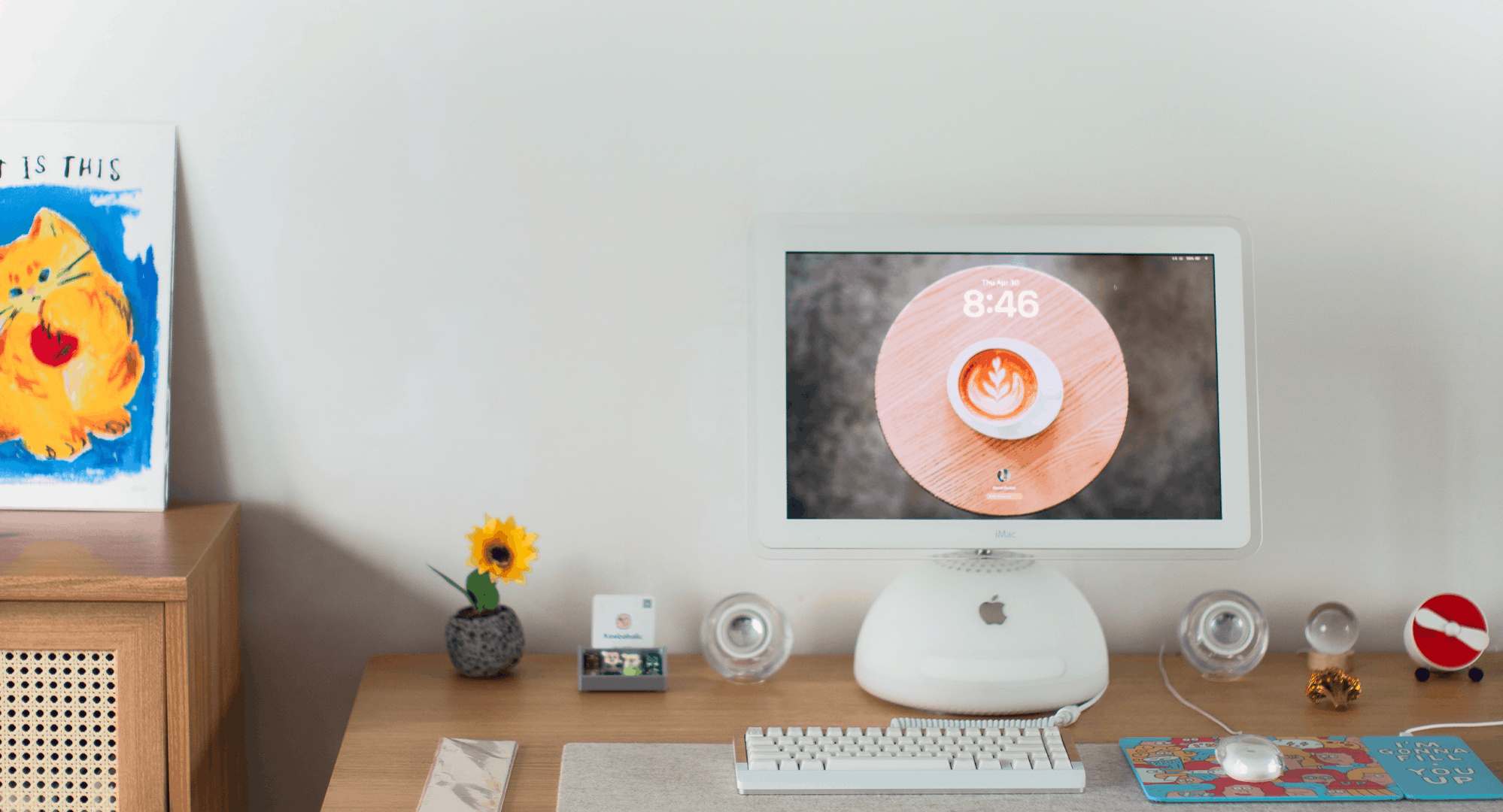

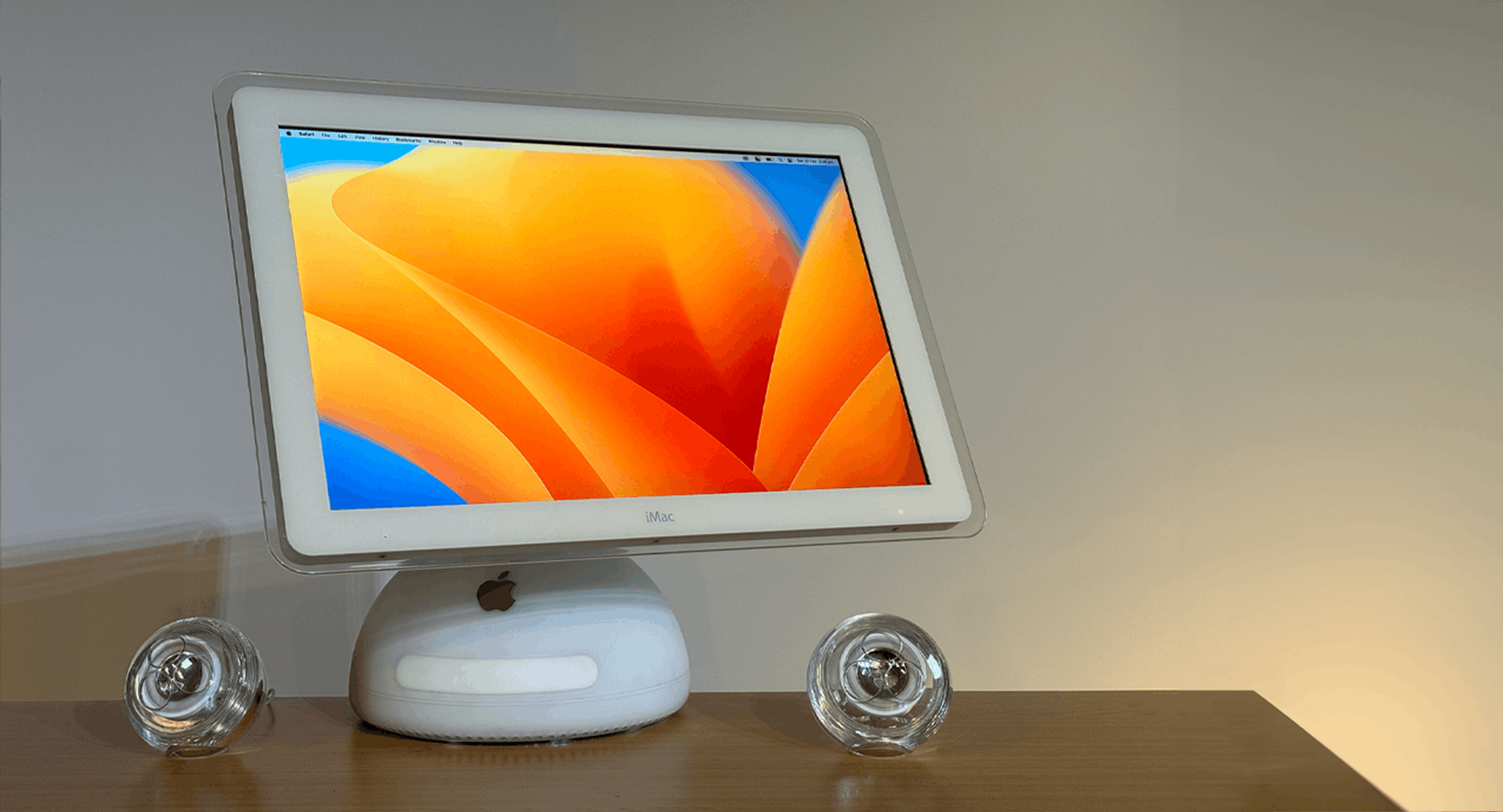

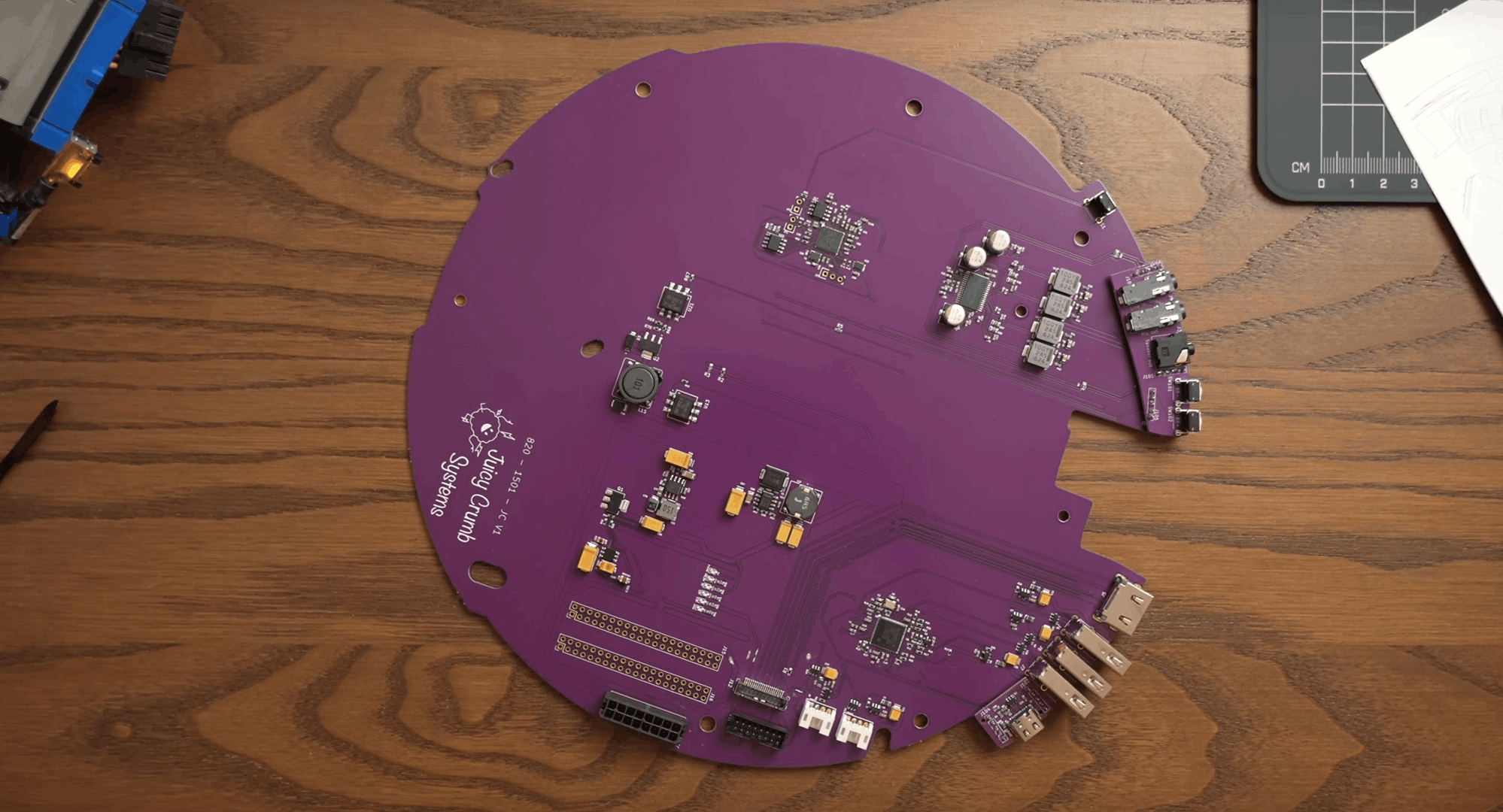

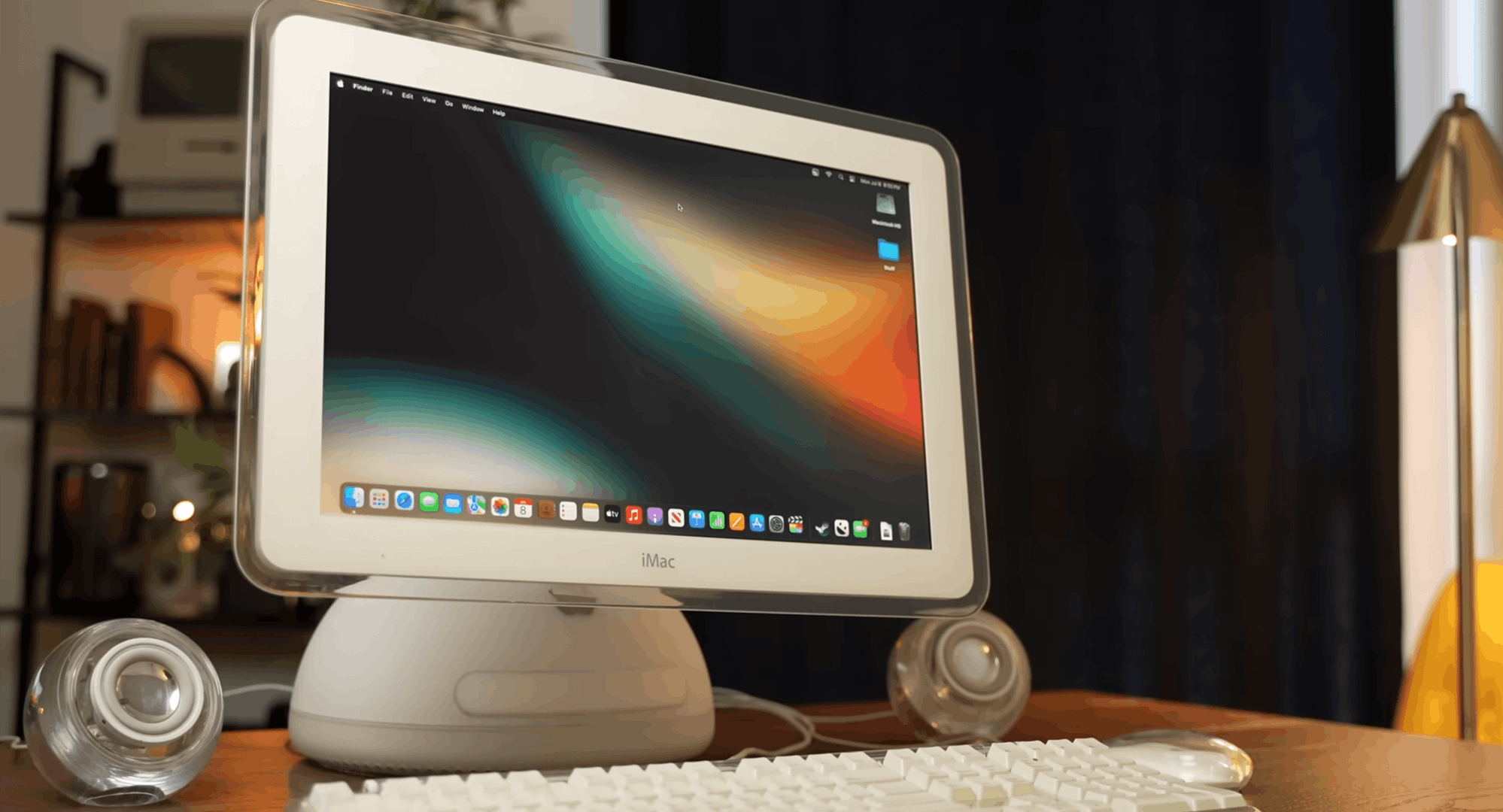

Every DockLite G4 is hand-assembled and bench-tested before it ships — what you see here is exactly what arrives at your door, ready to drop straight into your iMac G4.
On the board
Six features, one drop-in board.
Tactile Buttons
Accessible via the I/O holes at the rear of your iMac, for easy adjustment of display brightness.
USB Ports
Accessed from the rear of the iMac, so you can connect a keyboard, mouse or USB stick to your computer.
Audio Amplifier
Connects to your iMac’s original Pro Speakers, so you can keep pumping out music just as you did before.
USB Hub
An onboard USB 2.0 hub interfaces with the DockLite’s micro-controller and USB ports for all your accessories.
Micro Controller
The brains of the DockLite — adjusting fan speed and display brightness, and sleeping the system automatically.
Juicy-Link
Control brightness in software and update your DockLite G4 with future firmware patches. Learn more
Features
- HDMI video input
- USB 2.0 Hub with three USB A ports
- Integrated audio amplifier with Pro Speaker minijack
- Brightness control via touch buttons or Juicy-Link
Inputs
- HDMI (video)
- 3.5mm auxiliary jack (audio)
- USB-C (USB 2.0)
What’s in the box
- DockLite G4 upgrade board
- HDMI cable (1m or 2m, as specified at checkout)
- USB-C to USB-A/USB-C cable (1m or 2m, as specified at checkout)
- 3.5mm audio cable (1m or 2m, as specified at checkout)
- Illustrated instruction manual
- Juicy Crumb sticker
Our detailed installation guides will walk you through every step, so you won’t get lost during the install.
Compatibility
Check your model before you buy.
Some “lower-end” devices — such as set-top boxes, DVD players and games consoles — may not be compatible with the DockLite G4.
