Description

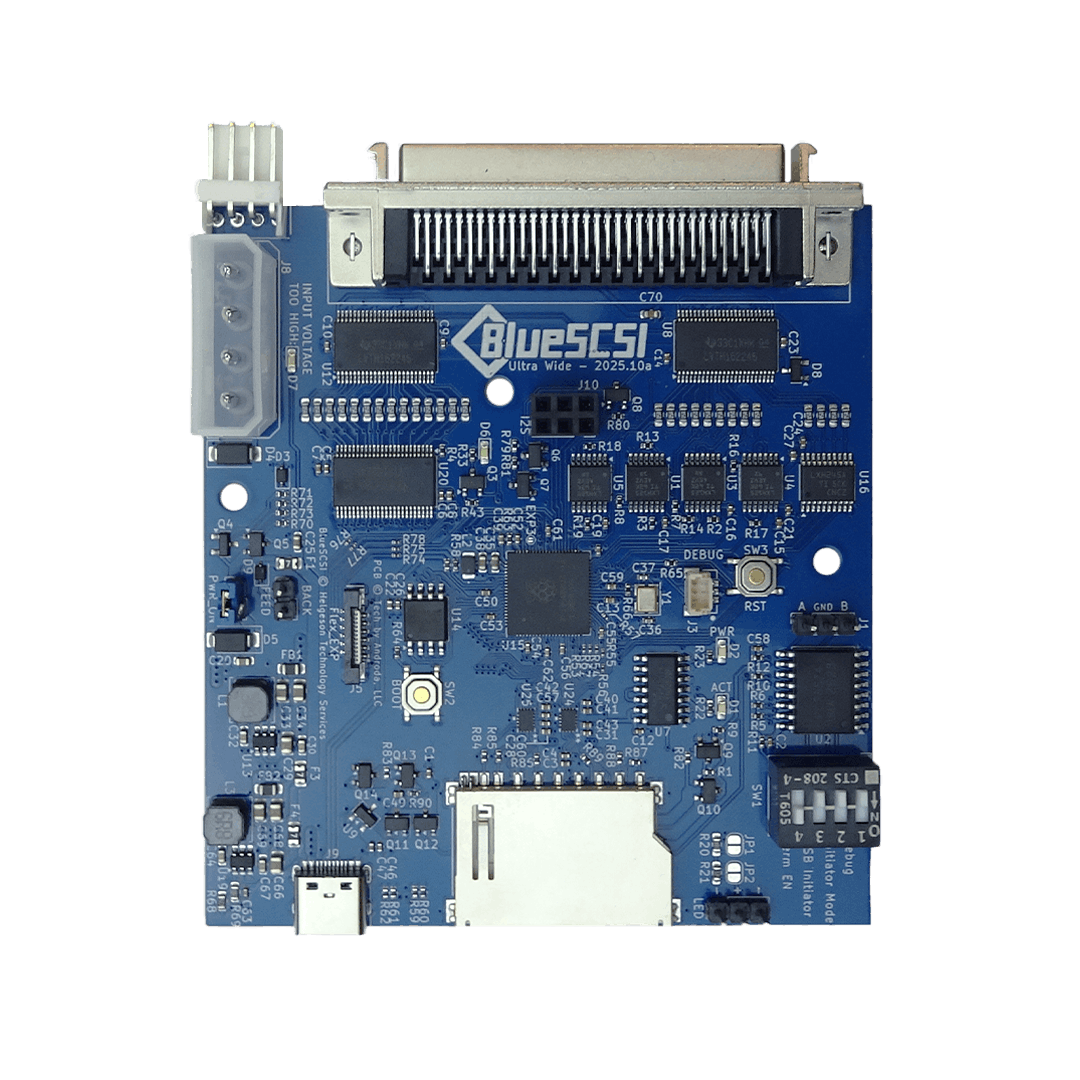

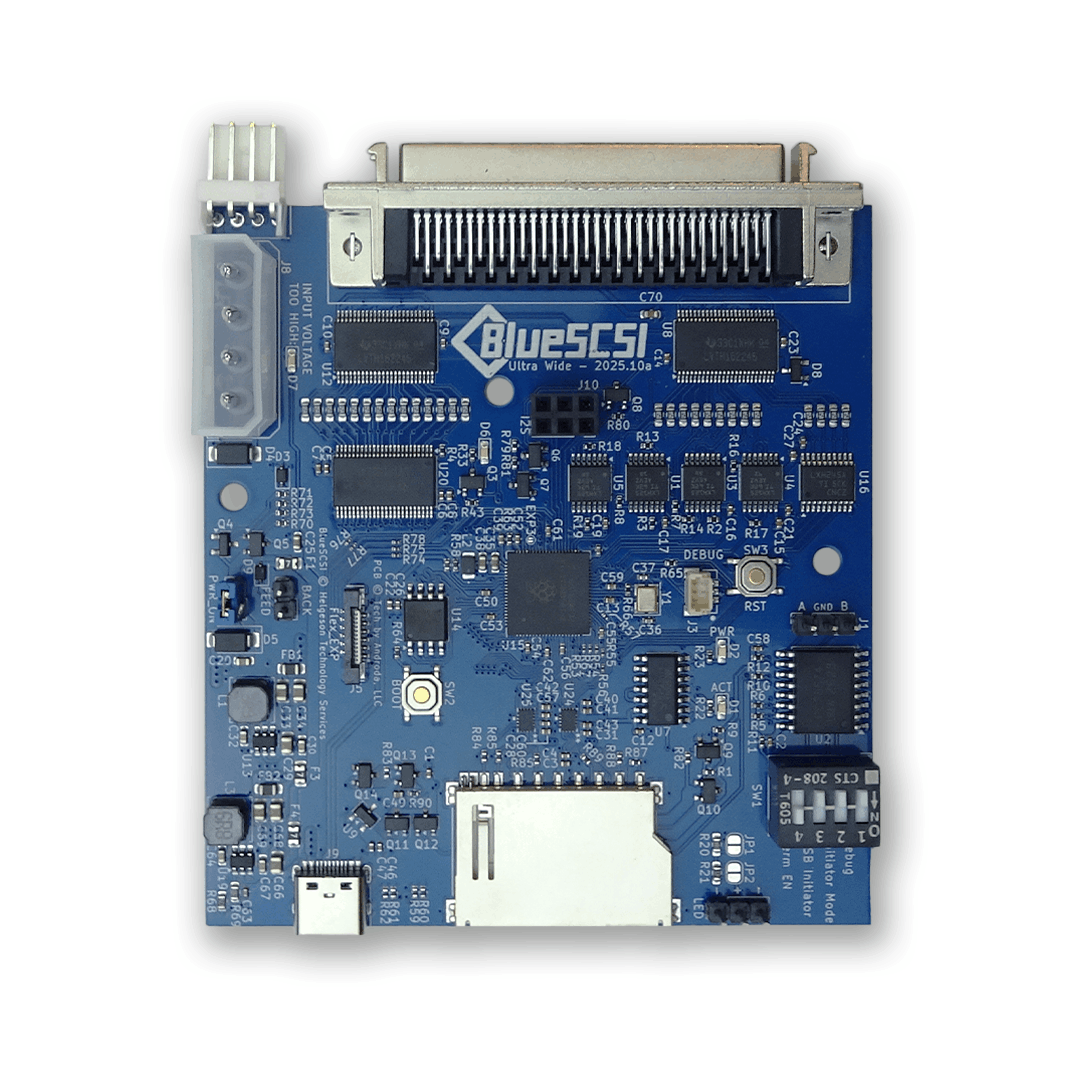

Bring solid-state storage to your vintage workstation with the BlueSCSI Ultra Wide 68 Pin. Designed for classic systems using Ultra Wide 68-pin SCSI, the BlueSCSI Ultra delivers fast, reliable SD card-based storage in a simple plug-and-play package.

No complex setup, drivers, or configuration utilities required, just copy your disk image files to an SD card, connect power, and boot your machine.

Each unit comes with a 3D printed mounting bracket for straightforward internal installation.

Features

• 68-Pin Ultra Wide SCSI Support
  Compatible with many vintage computers and workstations using internal 68-pin Ultra Wide SCSI connections.
• Fast SD-Based Storage
  Achieves read speeds up to 30MB/sec depending on host system and SD card performance.
• Simple Operation
  Drag disk image files onto an SD card and start using your system immediately.
• Full-Size SD Card Slot
  Easier media swapping and improved durability compared to microSD adapters.
• BlueSCSI Ultra Audio Support
  Supports the optional BlueSCSI Ultra Audio Board for direct line-level CD audio output.
• Front Panel Module Ready
  Compatible with the optional BlueSCSI Ultra Front Panel Module, enabling:
  • Web-based configuration
  • Image switching
  • Firmware updates
  • Settings management
  • Physical buttons and display controls
• Improved Hardware Controls
  DIP switches replace traditional jumper settings for easier configuration and debugging.
• Flexible Power Options
  Supports both Berg and standard Molex power connectors.
  External power connection is required on Ultra Wide models.

Compatibility

Compatible with most systems supporting Ultra Wide 68-pin SCSI devices, including select:

• Classic Macintosh systems
• Vintage PCs and workstations
• Retro computing hardware using 68-pin internal SCSI

Included

• BlueSCSI Ultra – Wide 68 Pin
• 3D printed mounting bracket

Important Notes

• WiFi networking is not available on the Ultra Wide 68 Pin model.
• Existing external headers for Power On, Back Feed, and External LED remain compatible with previous BlueSCSI setups.
• Mounting hole locations are unchanged for easier upgrades from earlier revisions.

Firmware updates and GPLv3 source code are available at:
https://github.com/BlueSCSI/BlueSCSI-v2/
